LuxeWall FlameGuard® by Bondor®

By Institute Library posted 21 Sep, 2021 20:21

Product Details

LuxeWall FlameGuard® by Bondor®

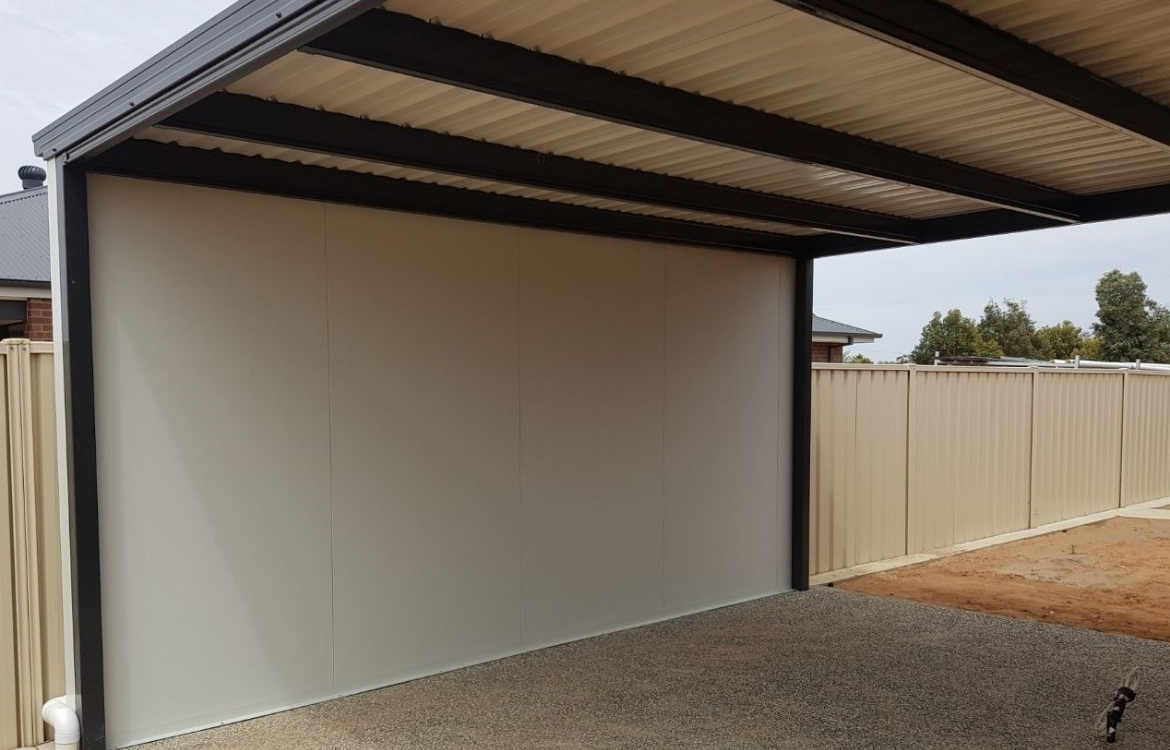

LuxeWall FlameGuard® is a fire rated architectural boundary wall system tested and approved for use in commercial and residential applications. LuxeWall® FlameGuard® is a lightweight, conceal fixed and architecturally finished high performance wall product that simplifies installation on zero boundary properties where site access is difficult.

LuxeWall FlameGuard is available in two core thicknesses 50 and 75mm delivering a Total R-value of 1.9, 2.5 for insulation average temperature of 15˚C.

Key Features
• Available Core MW
• Standard Width 1200mm, 900mm* (*non-standard)
• Length Up to 6.5m
• External Material BlueScope COLORBOND® Steel 0.6mm G300
• External Finish Plain, VJ
• Exterior Colour Options Standard COLORBOND® colours, Metallic Cosmic®, Metallic Astro®, Matt Basalt®, Matt Surfmist®
• Internal Material BlueScope COLORBOND® Steel 0.6mm with HygienePlus®
• Internal Finish Plain
• Interior Colour Options Surfmist®
• CODEMARK™ Accredited CM40239
• Bushfire Attack Level BAL- FZ (all exposed core to be covered with flashing)
• Material Group Numbers C1.10 Group 1
• Ignitability Index 0
• Spread of Flame Index 0
• Heat Evolved Index 0
• Smoke Index 3
• SMOGRARC <100
• Fire Resistance AS1530.4 FRL 90/90/90

Advantages
• Boundary wall system achieving FRL 60/60/60 or 90/90/90
• Use of trending Architectural Matt & Metallic colour finishes.
• Feature wall
• Decorative facade

Typical Applications
• Multi -Residential
• Commercial
• Insulated Wall
• Home Improvements
• Home Renovations
• Modular Buildings
• Residential
