Product Details

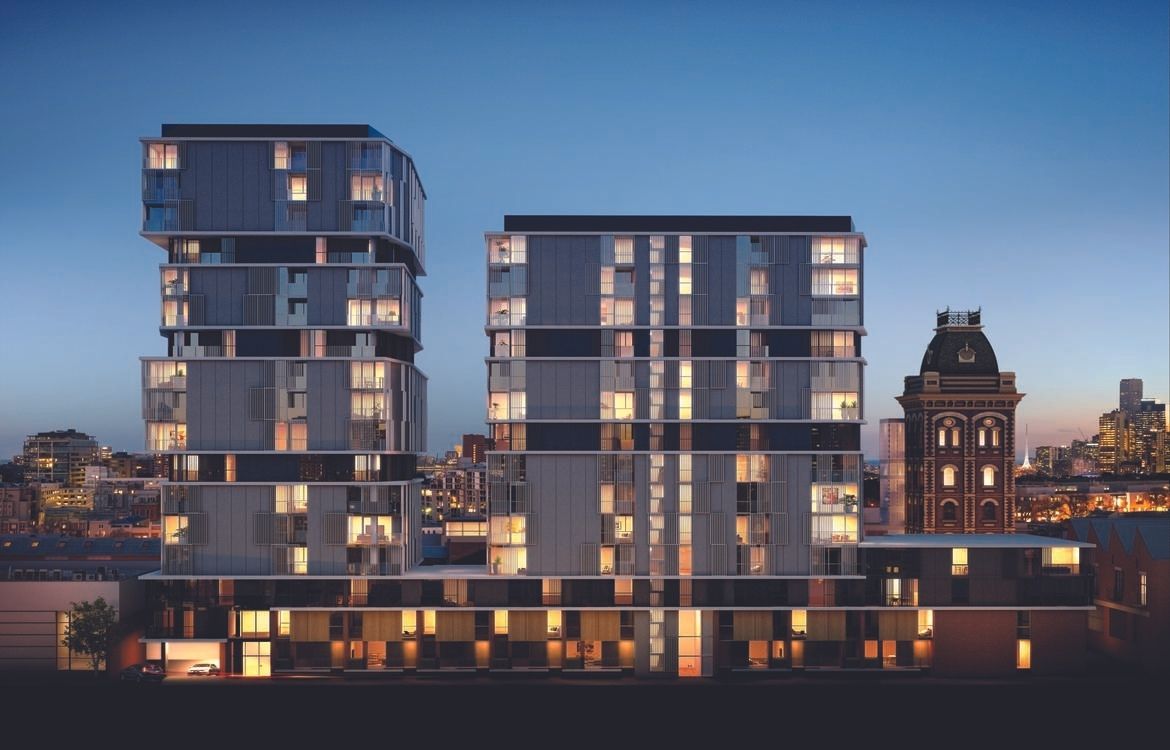

MetecnoKasset® by MetecnoPIR®
A complete cladding system offering an alternative solution for a curtain walling. MetecnoKasset is a new level of fire protection combining thermal properties for insulated wall and ceiling panel with a PIR core. It is a modular unite for seamless window/wall junctions, suitable for low and high-rise buildings, designed to slot into place and install up to 50% faster than traditional systems.
Module Properties
• Module Thickness 115mm
• Module Height Made to measure (up to 3800mm in height)
• Module Width Mead to measure (up to 1100mm wide panels)
• Mass 22.1 Kg/m2
• Frame Material Anodized or Powder Coated extruded aluminium
• Panel Finish Plain, Fineline, Satinline or Ribbed
• Colours Standard COLORBOND®, Metallic or custom
Key Features
• A complete system – façade, curtain and window wall system
• Tested and Passed all aspects of AS5113
• Prefab sections delivered direct to site
• Modular unit for seamless window/wall junctions
• Wind rated up to 250m
• Fast & economical alternative to tilt panel
• Light weight
• Easy to install – up to 50% faster than traditional systems
• No need to perimeter scaffolding
• Installed over the handrails or behind the screens
Project Applications
• High rise buildings
• Low rise buildings
• Projects in a difficult location
|
