Product Details

Equideck® by Bondor®
Equideck® is a flat roof insulated roofing panel system providing a standing seam like profile made from COLORBOND® steel. It features a pre-painted ceiling underside and high-performance insulated core (EPS-FR) in an all-in-one roofing panel. Equideck® has durability and delivers a long-spanning which makes it a thermally efficient roof.

Equideck is available in a range of core thicknesses 50, 75, 100, 125, 150, 200, 250mm and delivers Total-R value of 1.40, 2.03, 2.65, 3.27, 3.90, 5.15, 6.40 for insulation average temperature of 15˚C.

Key Features
• Available Core EPS-FR
• Standard Width 1200mm
• External Material BlueScope COLORBOND® Steel 0.6mm G300
• External Finish Plain, Ribbed, Satinline
• Exterior Colour Surfmist®
• Internal Material BlueScope COLORBOND® Steel 0.6mm G300
• Internal Finish Plain
• Interior Colour Surfmist®
• Pitch 3 degree
• CODEMARK™ Accredited CM40195
• Bushfire Attack Level BAL-40 (all exposed core to be covered with flashing)
• Material Group Numbers C1.10 Group 1 & 2a
• Ignitability Index 0
• Spread of Flame Index 0
• Heat Evolved Index 0
• Smoke Index 2-3
• SMOGRARC <100

Advantages
• Long Span
• Streamlined and minimalists
• Low maintenance
• Easy installation
• Cost Effective

Typical Applications

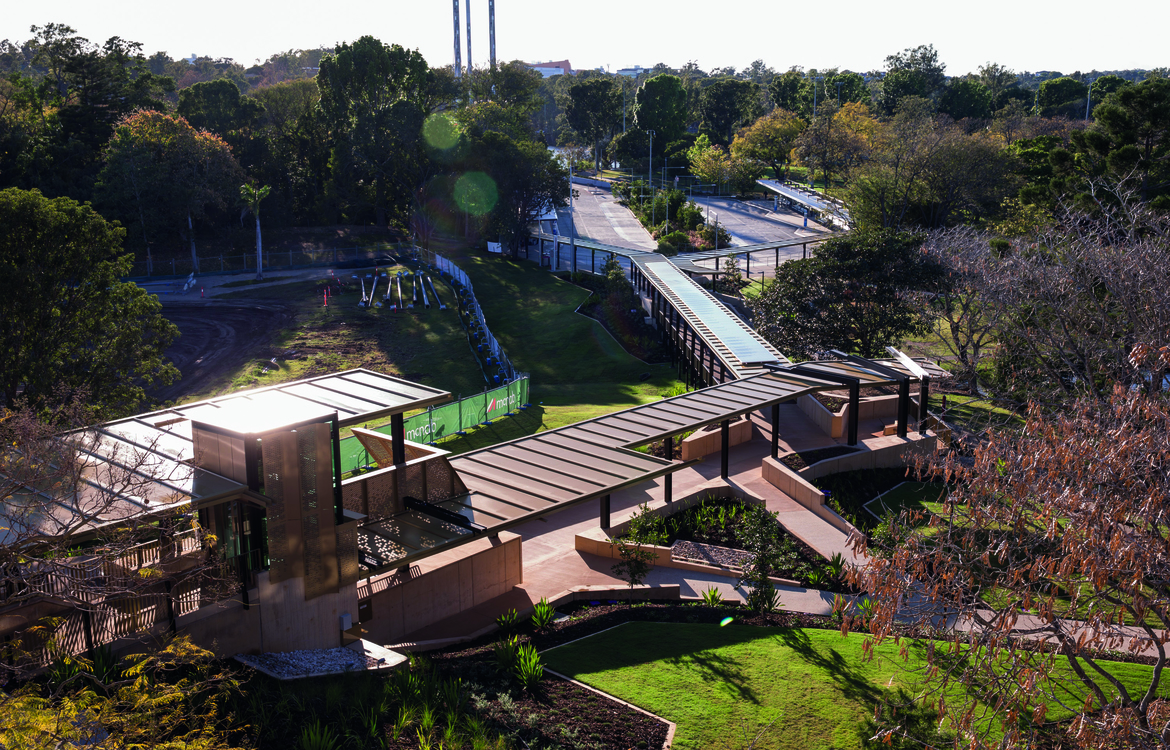

• Covered Walkways
• Education & Government
• Insulated Roofing
• Retail and Showrooms
• Sustainable Buildings
• Wineries
