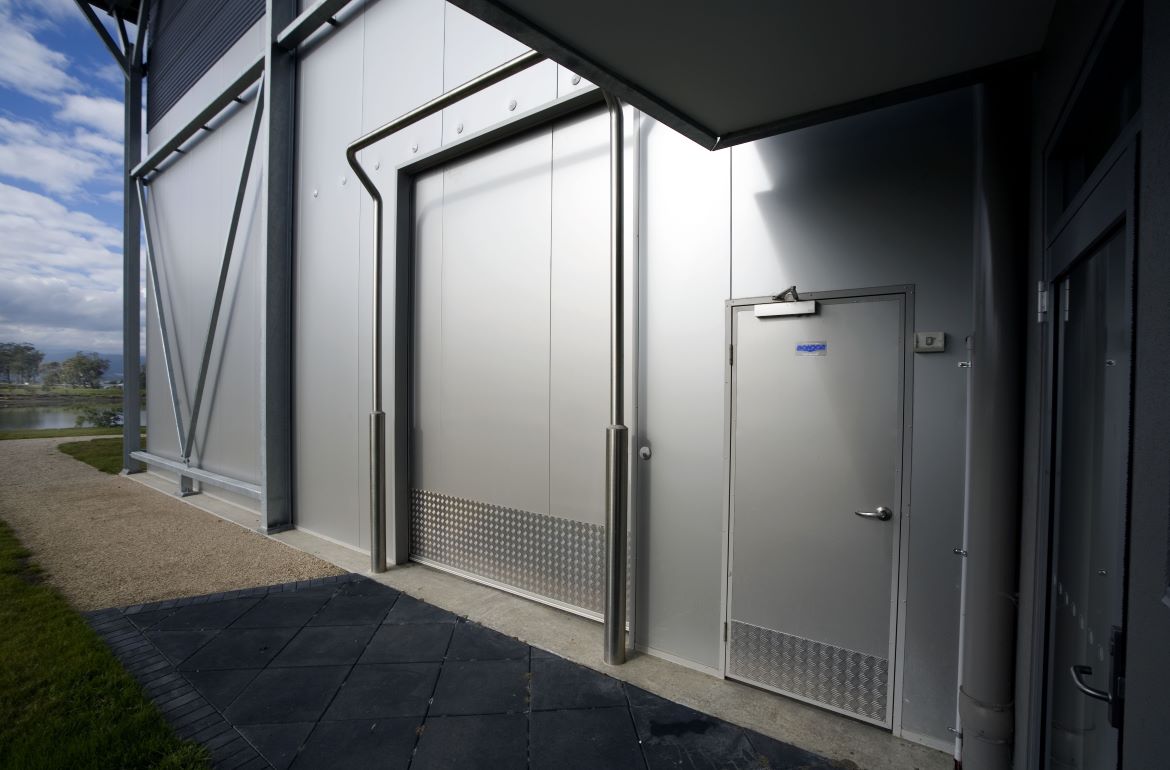

BondorPanel® by Bondor®.jpg

Product Details

BondorPanel® by Bondor®
BondorPanel® is a versatile and high performing insulated wall and ceiling panel used in controlled environments such as cold storage, food preparation areas and clean rooms, but extends its use to so many other project applications. BondorPanel is available in a range of core thicknesses 50, 75, 100, 125, 150, 200, 250mm in SL Grade. BondorPanel delivers Total R-value of 1.41, 2.04, 2.66, 3.28, 3.91, 5.16, 6.41 for insulation average temperature of 15˚C. Other temperatures and different EPS-FR core grades are available.

Key Features
• Available Core EPS-FR
• Standard Width 1200mm
• Length Up to 16m
• External Material BlueScope COLORBOND® Steel 0.6mm G300 CRP Grade
• External Finish Plain, Ribbed, Satinline
• Exterior Colour COLORBOND® Intramax™
• Internal Material BlueScope COLORBOND® Steel 0.6mm G300 CRP Grade
• Internal Finish Plain
• Interior Colour COLORBOND® Intramax™
• CODEMARK™ Accredited CM40189
• Bushfire Attack Level BAL-40 (all exposed core to be covered with flashing)
• Material Group Numbers C1.10 Group 1 & 2a
• Fire Hazard Properties AS/NZS 1530.3
• Ignitability Index 0
• Spread of Flame Index 0
• Heat Evolved Index 0
• Smoke Index 2-3
• SMOGRARC <100

Advantages
• Versatile application
• High thermal efficiency
• Lightweight
• Assembled on site

Typical Applications
• Coolrooms & Freezers
• Health & Infrastructure
• Ceilings, Walls and Partitions
• Office Fit-Outs & Retail Applications
• Laboratory & Clean Room
• Internal Partition Walls
• Transportable buildings
